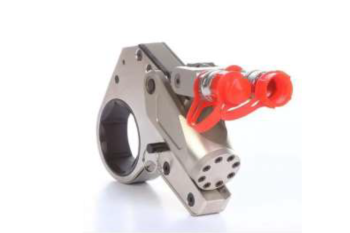

HGX SERIES DIRECT HEX TYPE HYDRAULIC TORQUE WRENCHES  Specification Units HGX - 2 HGX - 4 HGX - 8 HGX - 14 HGX - 32 Min. Torque NM 293 / 305 608 / 673 1192 / 1283 2222 5026 / 5351 Max. Torque NM 2943 / 3051 6092 / 6733 11926 / 12834 22225 50258 / 53512 Min. Torque FT.LBS 214 / 221 443 / 489 867 / 932 1615 3652 / 3888 Max. Torque FT.LBS 2137 / 2217 4426 / 4891 8863 / 9323 16147 36511 / 38875 Across Flat MM 19-55 / 55-60 34-65 / 70-80 46-95 / 100-105 50-117 110-155 / 160-180 Across Flat INC 3/4-2.3/16 / 2.3/16-2.3/8 1.13/16-3.3/4 / 3.7/8-4.1/8 2-4.1/2 4.1/4-6.1/8 / 6.1/8-7.1/16 Weight (Drive) KG 1.5 / 1.5 3.2 / 3.2 5.3 / 5.3 9.8 15 / 15 Drive Unit LBS 3.3 / 3.3 07-Jul 11.6 / 11.6 21.6 33 / 33 Weight (Ratchet) KG 1.7 / 1.85 4.1 / 4.2 8.7 / 8.8 11.5 32 / 35 Ratchet Unit LBS 3.7 / 4 9 / 9.2 19 / 19.4 25 70 / 77 --------------------------------------------------------------------------------------------------- Parameter Unit HGX-2 HGX-4 HGX-8 HGX-14 HGX-32 Min. Torque Nm 293–305 608–673 1192–1283 2222 5026–5351 Max. Torque Nm 2943–3051 6092–6733 11926–12834 22225 50258–53512 Min. Torque ft-lbs 214–221 443–489 867–932 1615 3652–3888 Max. Torque ft-lbs 2137–2217 4426–4891 8863–9323 16147 36511–38875 Parameter Unit HGX-2 HGX-4 HGX-8 HGX-14 HGX-32 Across Flats mm 19–55 34–65 46–95 50–117 110–180 inch 3/4–2-3/16 1-5/16–2-9/16 1-13/16–3-3/4 2–4-1/2 4-5/16–7-1/16 Component Unit HGX-2 HGX-4 HGX-8 HGX-14 HGX-32 Drive Unit kg 1.5 3.2 5.3 9.8 15 lbs 3.3 7 11.6 21.6 33 Weight (Total) kg 1.7–1.85 4.1–4.2 8.7–8.8 11.5 32–35 Ratchet Unit lbs 3.7–4 9–9.2 19–19.4 25 70–77  ------------------------------------------------------------------------------------------------                                                                                                                                                                                                 LINK SELECTION FEATURES: • Compact design with longer arm improves the reliability more accurate and easier to use, since the wrench directly operate on the nuts. • 360x160 degree swivel or 360x360 degree swivel allows the wrench to operate freely in confined areas.  Model Imperial Metric Model Imperial Metric Model Imperial Metric Model Imperial Metric HGL-2-19 * 19 mm HGL-4-33 1-5/16" — HGL-8-41 1-5/8" 41 mm HGL-14-50 — 50 mm HGL-2-20 13/16" — HGL-4-34 — 34 mm HGL-8-42 1-11/16" — HGL-14-51 2" — HGL-2-21 — 21 mm HGL-4-35 1-3/8" — HGL-8-44 1-3/4" — HGL-14-52 2-1/16" — HGL-2-22 7/8" 22 mm HGL-4-36 — 36 mm HGL-8-46 1-13/16" 46 mm HGL-14-53 2-1/8" — HGL-2-23 15/16" — HGL-4-37 1-7/16" — HGL-8-47 1-7/8" — HGL-14-55 2-3/16" 55 mm HGL-2-24 — 24 mm HGL-4-38 1-1/2" 38 mm HGL-8-49 1-15/16" 49 mm HGL-14-57 2-1/4" — HGL-2-25 1" — HGL-4-39 1-9/16" — HGL-8-50 — 50 mm HGL-14-58 2-5/16" — HGL-2-27 1-1/16" 27 mm HGL-4-41 1-5/8" 41 mm HGL-8-51 2" — HGL-14-60 2-3/8" 60 mm HGL-2-28 1-1/8" — HGL-4-42 1-11/16" — HGL-8-52 2-1/16" — HGL-14-62 2-7/16" — HGL-2-30 1-3/16" 30 mm HGL-4-44 1-3/4" — HGL-8-54 2-1/8" — HGL-14-63 2-1/2" — HGL-2-31 1-1/4" — HGL-4-46 1-13/16" 46 mm HGL-8-55 2-3/16" 55 mm HGL-14-65 2-9/16" 65 mm HGL-2-32 — 32 mm HGL-4-47 1-7/8" — HGL-8-57 2-1/4" — HGL-14-66 2-5/8" — HGL-2-33 1-5/16" — HGL-4-49 1-15/16" 49 mm HGL-8-58 2-5/16" — HGL-14-68 2-11/16" — HGL-2-34 — 34 mm HGL-4-50 — 50 mm HGL-8-60 2-3/8" 60 mm HGL-14-70 2-3/4" 70 mm HGL-2-35 1-3/8" 35 mm HGL-4-51 2" — HGL-8-61 2-7/16" — HGL-14-71 2-13/16" — HGL-2-36 — 36 mm HGL-4-52 2-1/16" — HGL-8-63 2-1/2" — HGL-14-73 2-7/8" — HGL-2-37 1-7/16" — HGL-4-53 2-1/8" — HGL-8-65 2-9/16" 65 mm HGL-14-75 2-15/16" 75 mm HGL-2-38 1-1/2" 38 mm HGL-4-55 2-3/16" 55 mm HGL-8-66 2-5/8" — HGL-14-76 3" — HGL-2-39 1-9/16" — HGL-4-57 2-1/4" — HGL-8-68 2-11/16" — HGL-14-77 3-1/16" — HGL-2-41 1-5/8" 41 mm HGL-4-58 2-5/16" — HGL-8-70 2-3/4" 70 mm HGL-14-79 3-1/8" — HGL-2-42 1-11/16" — HGL-4-60 2-3/8" 60 mm HGL-8-71 2-13/16" — HGL-14-80 — 80 mm HGL-2-44 1-3/4" — HGL-4-61 2-7/16" — HGL-8-73 2-7/8" — HGL-14-81 3-3/16" — HGL-2-46 1-13/16" 46 mm HGL-4-63 2-1/2" — HGL-8-75 2-15/16" 75 mm HGL-14-82 3-1/4" — HGL-2-47 1-7/8" — HGL-4-65 2-9/16" 65 mm HGL-8-76 3" — HGL-14-84 3-5/16" — HGL-2-49 1-15/16" 49 mm HGL-4-66 2-5/8" — HGL-8-77 3-1/16" — HGL-14-85 — 85 mm HGL-2-50 — 50 mm HGL-4-68 2-11/16" — HGL-8-79 3-1/8" — HGL-14-86 3-3/8" — HGL-2-51 2" — HGL-4-70 2-3/4" 70 mm HGL-8-80 — 80 mm HGL-14-87 3-7/16" — HGL-2-52 2-1/16" — HGL-4-71 2-13/16" — HGL-8-81 3-3/16" — HGL-14-88 3-1/2" — HGL-2-54 2-1/8" — HGL-4-73 2-7/8" — HGL-8-82 3-1/4" — HGL-14-90 — 90 mm HGL-2-55 2-3/16" 55 mm HGL-4-75 2-15/16" 75 mm HGL-8-84 3-5/16" — HGL-14-91 3-9/16" — HGL-2-57 2-1/4" — HGL-4-76 3" — HGL-8-85 — 85 mm HGL-14-92 3-5/8" — HGL-2-59 2-5/16" — HGL-4-77 3-1/16" — HGL-8-86 3-3/8" — HGL-14-93 3-11/16" — HGL-2-60 2-3/8" 60 mm HGL-4-79 3-1/8" — HGL-8-87 3-7/16" — HGL-14-95 3-3/4" 95 mm HGL-4-80 — 80 mm HGL-8-88 3-1/2" — HGL-14-98 3-7/8" — HGL-8-90 — 90 mm HGL-14-100 3-15/16" 100 mm HGL-8-91 3-9/16" — HGL-14-101 4" — HGL-8-92 3-5/8" — HGL-14-104 4-1/16" — HGL-8-93 3-11/16" — HGL-14-105 4-1/8" 105 mm HGL-8-95 3-3/4" 95 mm HGL-14-109 4-5/16" — HGL-8-96 3-13/16" — HGL-14-110 — 110 mm HGL-8-98 3-7/8" — HGL-14-111 4-3/8" — HGL-8-100 3-15/16" 100 mm HGL-14-112 4-7/16" — HGL-8-101 4" — HGL-14-114 4-1/2" — HGL-14-115 — 115 mm HGL-14-117 — 117 mm ------------------------------------------------------------------------------------------------------------------------------- Model Imperial Metric HGL-32-108 4-1/4" — HGL-32-109 4-5/16" — HGL-32-110 — 110 mm HGL-32-111 4-3/8" — HGL-32-112 4-7/16" — HGL-32-114 4-1/2" — HGL-32-115 — 115 mm HGL-32-116 4-9/16" — HGL-32-117 4-5/8" 117 mm HGL-32-119 4-11/16" — HGL-32-120 — 120 mm HGL-32-121 4-3/4" — HGL-32-122 4-13/16" — HGL-32-123 4-7/8" — HGL-32-125 — 125 mm HGL-32-126 4-15/16" — HGL-32-127 5" 127 mm HGL-32-128 5-1/16" — HGL-32-130 5-1/8" — HGL-32-131 5-3/16" — HGL-32-133 5-1/4" — HGL-32-134 5-5/16" 135 mm HGL-32-136 5-3/8" — HGL-32-138 5-7/16" — HGL-32-140 5-1/2" 140 mm HGL-32-141 5-9/16" — HGL-32-142 5-5/8" — HGL-32-144 5-11/16" — HGL-32-145 5-11/16" 145 mm HGL-32-146 5-3/4" — HGL-32-147 5-13/16" — HGL-32-149 5-7/8" — HGL-32-150 — 150 mm HGL-32-151 5-15/16" — HGL-32-152 6" — HGL-32-153 6-1/16" — HGL-32-155 — 155 mm HGL-32-156 6-1/8" — HGL-32-157 6-3/16" — HGL-32-158 6-1/4" — HGL-32-160 6-5/16" — HGL-32-161 6-5/16" — HGL-32-162 6-3/8" — HGL-32-163 6-7/16" — HGL-32-165 — 165 mm HGL-32-166 6-1/2" — HGL-32-168 6-9/16" — HGL-32-170 — 170 mm HGL-32-171 6-3/4" — HGL-32-173 6-13/16" — HGL-32-174 6-7/8" — HGL-32-175 — 175 mm

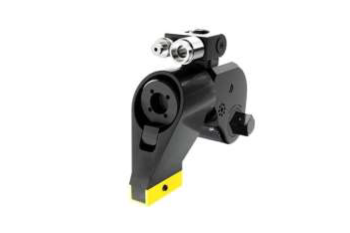

HGS SQUARE DRIVE HYDRAULIC WRENCHES  parameter Unit HGS-07 HGS-1 HGS-3 HGS-5 HGS-8 HGS-10 HGS-20 HGS-25 HGS-35 HGS-50 Sq. Drive Inch 3/4" 3/4" 1" 1.1/2" 1.1/2" 1.1/2" 2.1/2" 2.1/2" 2.1/2" 2.1/2" Min. Torque Nm 112 172 450 740 1078 1450 2719 3472 4866 6925 Max. Torque Nm 1120 1731 4500 7380 10780 14508 27197 34725 48666 69247 Bolt Size Mm 14–30 16–36 22–48 27–56 30–64 36–72 42–90 48–100 64–120 72–125 Weight Kg 1.8 2.5 4.9 9.5 10.8 14.7 26 35 50 65 ------------------------------------------------------------------------------------------------------------------------------------------------------------- Parameter Unit HGS-07 HGS-1 HGS-3 HGS-5 HGS-8 HGS-10 HGS-20 HGS-25 HGS-35 HGS-50 Body Length (L1) mm 110 144.5 178 213 222 246 305 321 371 376 inch 4.33 5.69 7 8.38 8.74 9.69 12 12.6 14.6 14.8 Overall Length (L2) mm 139 173 228 274.5 292 317 383 401 465 528 inch 5.47 6.81 8.98 10.8 11.49 12.48 15.08 15.78 18.3 20.78 Tool Width (H1) mm 42 52 69.5 82.5 92 102 112.5 120 137 162 inch 1.65 2.04 2.74 3.24 3.62 4.01 4.43 4.72 5.39 6.14 Overall Width (H2) mm 65 75 94 128.5 134 142 183 200 216 226 inch 2.55 2.95 3.7 5.06 5.2 5.6 7.2 7.87 8.5 8.9 Tool Height (H3) mm 77 95.5 115 149 167 182 220 246 282 291 inch 3.03 3.76 4.53 5.87 6.57 7.16 8.33 9.68 11.1 11.5 Overall Height (H4) mm 108 136 176 199 217 232 270 297 332 326 inch 4.25 5.35 6.93 7.83 8.54 9.13 10.62 11.69 13.07 12.83 Tool Radius Around Bolt (R1) mm 21 26.3 34.5 39 47 51 59 66 77 78.8 inch 0.82 1.03 1.36 1.53 1.85 2 2.32 2.59 3.03 3.1 Reaction Reach (R2) mm 68 85 111.5 140 153 154 186 199 241 295 inch 2.67 3.35 4.39 5.51 6.02 6.06 7.32 7.83 9.48 11.6

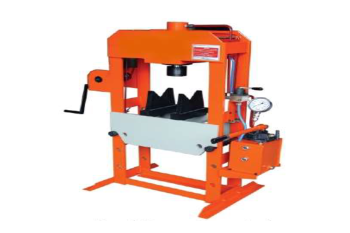

WORKSHOP PRESSES Features / Applications  Press structures are aesthetically fabricated for rated capacity  Hand pump/ motorized power pack (optional).  For removal and fitment of bearing, sprockets, gears, straightening of shafts and general maintenance.Accessories  Calibrated pressure gauge  Pair of “V” blocks  One pushing adaptor                                                        HWP Series- H- HYGRIP W –Workshop P-Press     Rated Capacity (ton)Capacity @ 700kg/cm² (kN)Stroke (mm)Model No.Min H1 (mm)Max H2 (mm)Total height H3 (mm)Hole pitch H4 (mm)Table width W1 (mm)Total width W2 (mm)Depth D1 (mm)Depth D2 (mm)Cylinder typeTable adjustment mechanismWt. (Approx.) (kg)15167150HWP 15-1501506001155150500740200500Spring ReturnWinch15530309150HWP 30-1501507501445150600900220600Spring ReturnWinch28050550150HWP 50-15015090017701507501130250750Spring ReturnWinch42575792200HWP 75-200200100019052009001310280900Spring ReturnWinch5801001077200HWP 100-20025010502080200100014503201000Double ActingChain10701501589300HWP 150-30030010502275250125018103801120Double ActingChain15002002199300HWP 200-30030010502430250125019304501350Double ActingChain23503003167300HWP 300-30025010002525250125018805001500Double ActingChain39004004948300HWP 500-30025010002745250125019505001600Double ActingChain4900 Note: 100 Ton & above capacity, press cylinder with chain facilitates daylight adjustment of table. Pumping Unit Specification Hand Pump (Model)Compatible HWP models (ton)Rated Capacity (liters)Pump StagePressure (kg/cm²) – 1st StagePressure (kg/cm²) – 2nd StageFlow/Stroke (cc) – 1st StageFlow/Stroke (cc) – 2nd StageWeight (Approx.) (kg)OperationHHP-2P4-2-555Two30700492.818.5ManualPower Pack ModelCompatible HWP models (ton)Pump StageMotor HP/PhaseFilling Capacity (liters)Pump Flow (l/min)Operating Pressure (kg/cm²)Weight (Approx.) (kg)OperationHPU002031100Single2 / Three201.070082Manual (Hand Lever DCV)HPU003077150–300Single3 / Three401.5700143Manual (Hand Lever DCV)HPU005078500Single5 / Three502.6700185Manual (Hand Lever DCV)       Equipment to be operated by trained personnel.  Safe practice! Use 80% of the rated capacity and stroke.  Customized solutions on the request.  Specifications are subject to change for continual improvement.

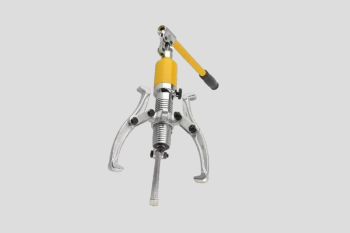

 Available in a wide force range of 5-100Tons.  Force developed Hydraulically ensures ergonomics & high pulling capacity.  Synchronous jaw movement enables wide range of applications.  Available in 2 options external hand pump & integral hand pump (up to 20tons). 2 and 3-jaw configurations to suit different applications.ModelCapacity (Ton)Stroke (mm)Min Spread (mm)Max Spread (mm)Weight (kg)HBP-555014020011HBP-10106017025013HBP-20207020535016HBP-30307522040035HBP-50507525050038HBP-10010075280650145* External pump typeModelCapacity (Ton)Stroke (mm)Min Spread (mm)Max Spread (mm)Weight (kg)HBPI-555014020016HBPI10106017025021HBPI20207520535025* Integral pump type

Model: GA7001 Gauge Adapter for 1/4" NPT Pressure Guage (Model:PG64)

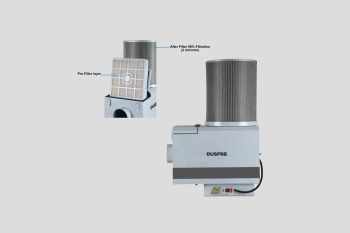

Applications     VMC's & HMC's     Milling     Grinding     Tapping     Die Casting     Welding Operations     High-Speed Machining     EDM/Spark Erosion Model HDF 250 HDF 450 HDF 600 HDF 1100 HDF 1500 HDF 2100 Air Flow (CMH) 250 450 600 1100 1500 2100 Input Power (kW) 35 85 100 210 240 185 Voltage (V) 415 415 415 415 415 415 RPM 2700 2350 2480 2400 2480 1450 Ampere (A) 0.22 0.55 0.65 1.36 1.55 1.2 Noise (dB) 60 62 64 68 70 66

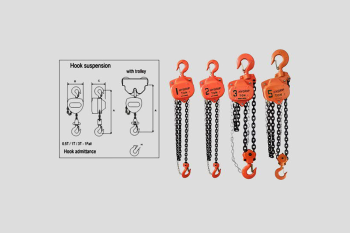

HG-CB Series > Triple spur gear chain pully block > Light weight helps in easy handling > Very Minimal lubrication for the lifetime > Surface hardened gears for extended working life Hook suspension with trolley > Unique cover design > Smooth passage of load chain > Machined guide rollers > Smooth hand chain operation > Use of needle roller bearings High operating efficiency 0.5T/1T/3T-1Fall Hook admittance > Self sustaining maintenance free friction brake Reduced downtime > Grade 80 load chain for strength & wear. Model Capacity (MT) Number of Falls of Load Chain (No.) Hook Suspension (A) Hook Suspension with Trolley (B) Fork Length (mm) Hook Admittance (H) Extra Weight per Additional Meter Lift (kg) Running Pull on Hand Chain (kg) 0.5 1 1 335 405 405 27 1.4 28 1 1 1 335 405 405 27 1.4 30 2 1 1 355 460 460 33 1.8 33 2.5 1 1 405 515 515 37 2 36 3 1 2 460 570 570 43 2.2 41 5 1 2 505 635 635 55 3.2 46 8 1 3 550 680 680 60 4 51

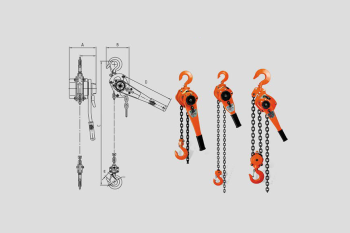

HG-LB Series > Alloy steel casing > Light weight helps in easy handling > Strengthening self locking screws > Surface hardened gears for extended working life > Quenched chains provide long life. Rated Load (T) 0.25 0.375 0.5 0.75 1 1.5 2 2.5 3 4.5 6 9 Test Load (T) 0.375 0.75 1.125 1.5 2.25 3 4.5 6 9 13.5 Standard Lift (m) 1 1 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 Min. distance between two hooks (mm) 205 260 295 335 385 450 542 645 710 820 920 1020 Efforts required at capacity (N) 217 303 140 185 251 314 385 450 542 645 710 820 No. of load chains 1 1 1 1 1 2 2 2 3 3 3 4 Diameter of load chain (mm) 4 5 6 6.3 7.1 8.9 10 12 13 15 16 18 Dimensions (mm) | A | 92 | 105 | 110 | 152 | 152 | 175 | 195 | | B | 75 | 82 | 92 | 128 | 128 | 148 | 168 | | C | 205 | 260 | 295 | 295 | 335 | 385 | 450 | | D | 153 | 261 | 256 | 256 | 358 | 368 | 368 | | E | 17 | 23 | 26 | 26 | 30 | 33 | 47 | Net weight (kg) | 1.85 | 4.6 | 7.7 | 8.6 | 10.6 | 14.6 | 20 | 43 |

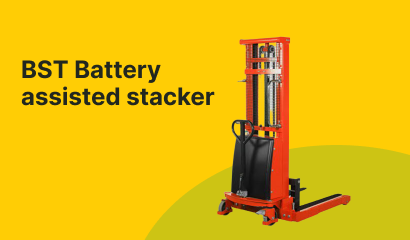

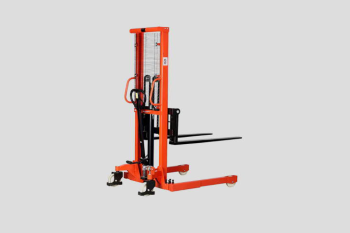

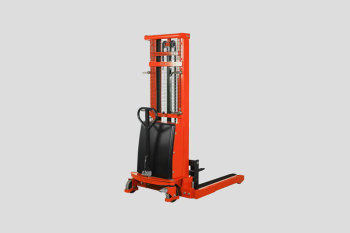

Model Capacity (kg) Fork Lift Height Range (mm) Fork Width (mm) Battery (V/Ah) Lifting Motor Power (kW) Battery Weight (~kg) Movement of Stacker BST 1.0 1000 1000-1500 300-550 12/120 1.5-1.6 30 Manual BST 1.5 1500 1500-2000 320-595 12/120 1.5-1.6 30 Manual BST 2.0 1600 2000-3000 300-550 12/120 1.6-2.0 40 Manual

Model Capacity (Kg) Max. Lifting Height (mm) Lowered Height of Forks (mm) Fork Length (mm) Adjustable Width of Fork (mm) Lifting Speed (mm/stroke) Outer Width of Front Legs (mm) Self Weight (kg) MST 2.0 2000 1600-3000 85 900/1150 300-480 14 750 180 MST 2.5 2500 2000-3000 90 1150 300-850 15 750 180 MST 3.0 3000 2000-3000 90 1150 300-850 15 800 200

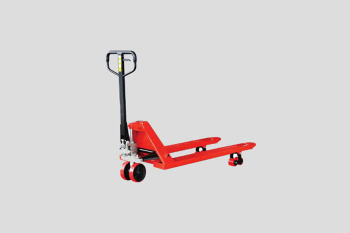

Model Capacity (kg) Min. Fork Height (mm) Max. Fork Height (mm) Lifting Height (mm) Fork Length (mm) Single Fork Width (mm) Fork Overall Width (mm) Fork Wheel Single (mm) Fork Wheel Tandem (mm) Steering Wheel (mm) Weight (kg) PHT 2.0 2000 90 195 195 1150 160 560 80x90 180x50 180 75 PHT 2.5 2500 90 195 195 1150 160 560 80x90 180x50 180 80 PHT 3.0 3000 90 195 195 1150 160 560 80x90 180x50 180 85 PHT 5.0 5000 110 195 195 1150 160 560 80x90 180x50 180 120

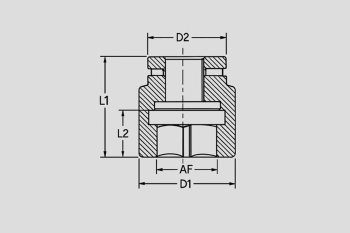

Model Bolt Size Hexagon AF (mm) L1 (mm) L2 (mm) D1 (mm) D2 (mm) HGS2565 M42 65 100 50 119 119 HGS2570 M45 70 105 52 128 128 HGS2575 M52 80 120 60 132 132 HGS2580 M56 85 120 65 138 138 HGS2590 M60 90 130 70 142 142 HGS2595 M64 95 130 75 148 148 HGS25100 M68 100 135 80 152 152 HGS25105 M72 105 140 85 160 160 HGS25110 M76 110 145 90 164 164 HGS25120 M80 115 150 95 170 170 HGS25125 M85 120 155 100 175 175 HGS25130 M90 125 160 105 180 180 HGS25135 M95 130 165 110 185 185 HGS25140 M100 135 170 115 190 190 HGS25145 M105 140 175 120 195 195 HGS25150 M110 145 180 125 200 200
