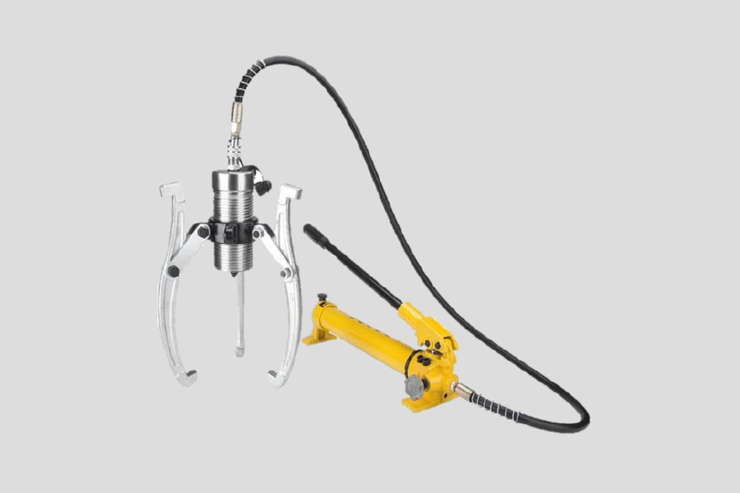

HYDRAULIC PULLER

Model Capacity (TON) Stroke (mm) Oil Capacity (cm3) Closed Height A (mm) Extended Height B (mm) Cylinder OD C (mm) Cylinder Bore ID (mm) Piston Dia D (mm) Weight (kg) SA-102 10 50 795 122 172 68 45 36 3.1 SA-104 10 100 1590 172 272 68 45 36 4.4 SA-106 10 150 2384 222 372 68 45 36 5.7 SA-202 20 50 1103 126 176 78 60 45 4 SA-204 20 100 2205 176 276 78 60 45 5.3 SA-206 20 150 3308 226 376 78 60 45 6.6 SA-302 30 50 2327 137 187 103 75 65 7.9 SA-304 30 100 4654 187 287 103 75 65 10.7 SA-306 30 150 6981 237 387 103 75 65 13.5 SA-502 50 50 3617 147 197 123 95 70 11.6 SA-504 50 100 7235 197 297 123 95 70 14.5 SA-506 50 150 10852 247 397 123 95 70 18 SA-1002 100 50 7153 182 232 168 135 90 25.7 SA-1004 100 100 14307 232 332 168 135 90 30.6 SA-1006 100 150 21460 282 432 168 135 90 35.5 SA-1502 150 50 10686 182 232 205 165 115 43 SA-1504 150 100 21372 232 332 205 165 115 53 SA-1506 150 150 32057 282 432 205 165 115 63 SA-2002 200 50 14169 202 252 228 190 135 60 SA-2004 200 100 28339 252 352 228 190 135 71 SA-2006 200 150 42508 302 452 228 190 135 83 SA-2502 250 50 18143 248 298 270 215 180 105 SA-2506 250 150 54430 348 498 270 215 180 142 SA-3002 300 50 22608 267 317 285 240 200 126 SA-3006 300 150 67824 367 517 285 240 200 165 SA-30012 300 300 135648 517 817 285 240 200 224 SA-4002 400 50 28613 315 365 325 270 220 195 SA-4006 400 150 85840 415 565 325 270 220 245 SA-40012 400 300 171680 565 865 325 270 220 318 SA-5002 500 50 36512 345 395 373 305 250 283 SA-5006 500 150 109537 445 595 373 305 250 349 SA-50012 500 300 219074 595 895 373 305 250 451 SA-6002 600 50 42743 371 421 402 330 270 354 SA-6006 600 150 128230 471 621 402 330 270 431 SA-60012 600 300 256460 621 921 402 330 270 546 SA-8002 800 50 59699 424 474 472 390 320 560 SA-8006 800 150 179098 524 674 472 390 320 665 SA-80012 800 300 358196 674 974 472 390 320 825 SA-10002 1000 50 72573 477 527 530 430 360 799 SA-10006 1000 150 217720 577 727 530 430 360 937 SA-100012 1000 300 435440 727 1027 530 430 360 1145 SA-8002 800 50 59699 424 474 472 390 320 560 SA-8006 800 150 179098 524 674 472 390 320 665 SA-80012 800 300 358196 674 974 472 390 320 825 SA-10002 1000 50 72573 477 527 530 430 360 799 SA-10006 1000 150 217720 577 727 530 430 360 937 SA-100012 1000 300 435440 727 1027 530 430 360 1145

Model Capacity (TON) Stroke (mm) Closed Height A (mm) Extended Height B (mm) Outside Dia C (mm) Inside Dia (mm) Piston Dia D (mm) Weight (kg) DA-1010 10 250 380 630 70 45 36 10 DA-1012 10 300 430 730 70 45 36 11 DA-2010 20 250 390 640 80 60 45 13 DA-2012 20 300 440 740 80 60 45 15 DA-3010 30 200 364 564 95 72 65 17 DA-3012 30 300 464 764 95 72 65 21 DA-5010 50 200 374 574 120 95 70 29 DA-5012 50 300 474 774 120 95 70 35 DA-1008 100 200 389 589 175 135 90 60 DA-10012 100 300 489 789 175 135 90 73 DA-2002 200 50 217 267 228 190 135 63 DA-2006 200 150 317 467 228 190 135 84 DA-20012 200 300 467 767 228 190 135 146 DA-2502 250 50 261 311 270 215 180 102 DA-2506 250 150 361 511 270 215 180 135 DA-25012 250 300 511 811 270 215 180 184 DA-3002 300 50 280 330 285 240 200 133 DA-3006 300 150 380 530 285 240 200 173 DA-30012 300 300 530 830 285 240 200 231 DA-4002 400 50 341 391 325 270 220 211 DA-4006 400 150 441 591 325 270 220 262 DA-40012 400 300 591 891 325 270 220 336 DA-5002 500 50 376 426 372 305 250 309 DA-5006 500 150 476 626 372 305 250 360 DA-50012 500 300 626 926 372 305 250 460 DA-6002 600 50 397 447 402 330 270 381 DA-6006 600 150 497 647 402 330 270 458 DA-60012 600 300 647 947 402 330 270 575 DA-8002 800 50 438 488 472 390 320 583 DA-8006 800 150 538 688 472 390 320 681 DA-80012 800 300 688 988 472 390 320 850 DA-10002 1000 50 493 543 530 430 360 830 DA-10006 1000 150 593 743 530 430 360 970 DA-100012 1000 300 743 1043 530 430 360 1177

Model Capacity (TON) Stroke (mm) Closed Height A (mm) Extended Height B (mm) Outside Dia C (mm) Center Dia E (mm) Inside Dia (mm) Piston Dia D (mm) Weight (kg) SAH-202 20 50 161 210 98 27 73 54 7.5 SAH-204 30 100 220 325 114 33 90 63 10 SAH-302 30 50 180 220 105 31 80 59 9 SAH-304 60 100 246 350 114 33 90 63 14.5 SAH-602 60 50 250 300 158 54 123 91 30.2 SAH-604 100 100 300 400 212 80 165 127 36.2 SAH-1005 100 75 275 350 212 80 165 127 57

Model Capacity (TON) Stroke (mm) Closed Height A (mm) Extended Height B (mm) Outside Dia C (mm) Inside Dia (mm) Piston Dia D (mm) Weight (kg) LH-101 10 20 48 58 83x60 45 38 1.6 LH-201 20 21 56 67 99x76 50 64 2.7 LH-301 30 13 62 75 123x98 75 64 4.6 LH-501 50 16 72 88 148x120 95 70 7.3 LH-1001 100 16 91 107 188x160 135 95 16.8 LH-1501 150 16 100 116 215x190 165 115 27 LH-2001 200 20 110 130 255x244 190 135 42
