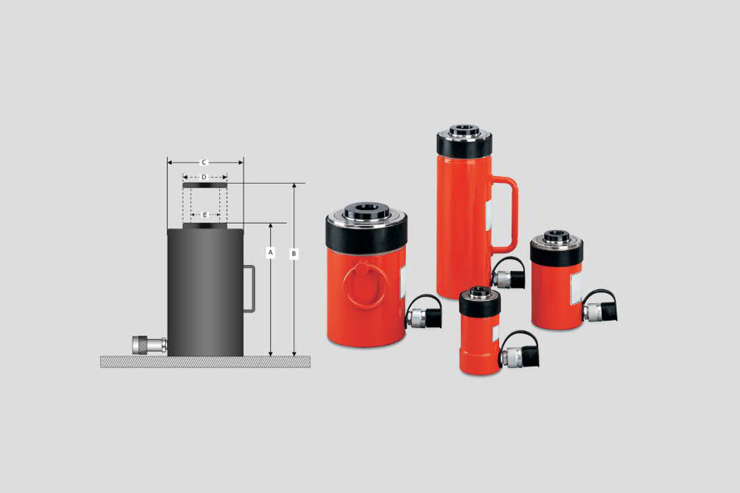

Single Acting Cylinder
Model Capacity (TON) Stroke (mm) Oil Capacity (cm3) Closed Height A (mm) Extended Height B (mm) Cylinder OD C (mm) Cylinder Bore ID (mm) Piston Dia D (mm) Weight (kg) SA-102 10 50 795 122 172 68 45 36 3.1 SA-104 10 100 1590 172 272 68 45 36 4.4 SA-106 10 150 2384 222 372 68 45 36 5.7 SA-202 20 50 1103 126 176 78 60 45 4 SA-204 20 100 2205 176 276 78 60 45 5.3 SA-206 20 150 3308 226 376 78 60 45 6.6 SA-302 30 50 2327 137 187 103 75 65 7.9 SA-304 30 100 4654 187 287 103 75 65 10.7 SA-306 30 150 6981 237 387 103 75 65 13.5 SA-502 50 50 3617 147 197 123 95 70 11.6 SA-504 50 100 7235 197 297 123 95 70 14.5 SA-506 50 150 10852 247 397 123 95 70 18 SA-1002 100 50 7153 182 232 168 135 90 25.7 SA-1004 100 100 14307 232 332 168 135 90 30.6 SA-1006 100 150 21460 282 432 168 135 90 35.5 SA-1502 150 50 10686 182 232 205 165 115 43 SA-1504 150 100 21372 232 332 205 165 115 53 SA-1506 150 150 32057 282 432 205 165 115 63 SA-2002 200 50 14169 202 252 228 190 135 60 SA-2004 200 100 28339 252 352 228 190 135 71 SA-2006 200 150 42508 302 452 228 190 135 83 SA-2502 250 50 18143 248 298 270 215 180 105 SA-2506 250 150 54430 348 498 270 215 180 142 SA-3002 300 50 22608 267 317 285 240 200 126 SA-3006 300 150 67824 367 517 285 240 200 165 SA-30012 300 300 135648 517 817 285 240 200 224 SA-4002 400 50 28613 315 365 325 270 220 195 SA-4006 400 150 85840 415 565 325 270 220 245 SA-40012 400 300 171680 565 865 325 270 220 318 SA-5002 500 50 36512 345 395 373 305 250 283 SA-5006 500 150 109537 445 595 373 305 250 349 SA-50012 500 300 219074 595 895 373 305 250 451 SA-6002 600 50 42743 371 421 402 330 270 354 SA-6006 600 150 128230 471 621 402 330 270 431 SA-60012 600 300 256460 621 921 402 330 270 546 SA-8002 800 50 59699 424 474 472 390 320 560 SA-8006 800 150 179098 524 674 472 390 320 665 SA-80012 800 300 358196 674 974 472 390 320 825 SA-10002 1000 50 72573 477 527 530 430 360 799 SA-10006 1000 150 217720 577 727 530 430 360 937 SA-100012 1000 300 435440 727 1027 530 430 360 1145 SA-8002 800 50 59699 424 474 472 390 320 560 SA-8006 800 150 179098 524 674 472 390 320 665 SA-80012 800 300 358196 674 974 472 390 320 825 SA-10002 1000 50 72573 477 527 530 430 360 799 SA-10006 1000 150 217720 577 727 530 430 360 937 SA-100012 1000 300 435440 727 1027 530 430 360 1145
