Manual Torque Multiplier (Heavy Duty Series)
Model Max Torque (Nm) Ratio Drive Size (Input) Drive Size (Output) Size (A x B x C x D, mm) Weight (Kg) LTM 1500 1500 05:01 1/2" 3/4" 108 x 176.5 x 234 5.1 LTM 2700 2700 5.3:1 1/2" 1" 108 x 176.5 x 234 7.1 LTM 4500 4500 ###### 1/2" 1" 108 x 176.5 x 234 13
Manual Torque Multiplier
Model Max Torque (Nm) Ratio Drive Size (Input) Drive Size (Output) Size (A x B x C x D, mm) Weight (Kg) HGTM 10 10000 4.5:1 1/2" 1" 82 x 98.5 x 97 x 122.4 2.1 HGTM 20 20000 10:01 1/2" 1" 82 x 102 x 105 x 147 3.15 HGTM 30 30000 12:01 1/2" 1" 89 x 131 x 120 x 163 3.5 HGTM 50 50000 16:01 1/2" 1" 93 x 131 x 120 x 163 5.3 HGTM 75 75000 21.5:1 1/2" 1 1/2" 115 x 163 x 137 x 199 10.6 HGTM 100 100000 27.8:1 1/2" 1 1/2" 127 x 173 x 146 x 215 14
Pneumatic Impact Wrench
Model Square Drive Torque (Max Nm) Free Speed (RPM) Overall Length (mm) Air Inlet (in) Hose Size (in) Air Pressure (bar) Weight (Kg) LIW125 1/2" 745 11,000 160 3/8" 3/8" 6.3 6.3 LIW190 3/4" 1085 4,000 190 1/2" 1/2" 6.3 6.6 LIW190N 3/4" 1085 4,000 190 1/2" 1/2" 6.3 6.8 LIW2254 1" 1100 3,800 255 1/2" 1/2" 6.3 8.5 LIW2254H 1" 1100 3,800 255 1/2" 1/2" 6.3 8.6 LIW2605 1" 1600 3,500 280 1/2" 1/2" 6.3 10.8 LIW2605H 1" 1600 3,500 280 1/2" 1/2" 6.3 11 LIW380 1 1/2" 2250 2,000 400 1/2" 1/2" 6.3 12.8

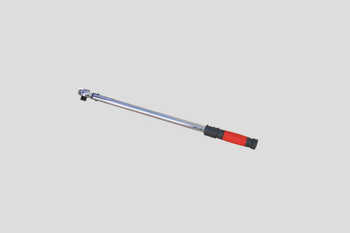

HG-MMT Series
Model Square Drive Torque Range (Nm) Torque Range (Lb.ft) Length (mm) Weight (Kg) MMT 75-400 3/4" 60-400 40-300 700 2.5 MMT 75-500 3/4" 80-500 60-370 800 2.8 MMT 75-800 3/4" 100-800 75-590 1000 3 MMT 75-1000 3/4" 120-1000 90-740 1200 3.6 MMT 1-1000 1" 200-1000 150-740 1200 5.9 MMT 1-1500 1" 300-1500 220-1100 1200 9.2 MMT 1-2000 1" 400-2000 300-1480 1250 10.5 MMT 1-3000 1" 500-3000 370-2200 1250 10.5
