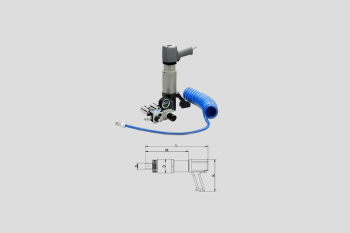

Pneumatic Torque Multiplier
HGP series requires pressure 90psi with 55CFM flow. FRL unit must to extract best performance & long life. Accurate torque with low noise and low vibration. Made from lightweight high-strength material. Precise gear design & ratio helps deliver accurate torque. Highest power-to-weight ratio Customized sizes available up on request. Extensions available for job specific applications. Splined reaction area allows for the use of custom reaction fixtures. Model Min Torque (Nm) Max Torque (Nm) Square Drive Size (in) D (mm) M (mm) L (mm) K (mm) RPM Weight (w/o reaction arm, Kg) HGP-05 100 600 4-Mar 60 60 170 185 50 4.2 HGP-10 150 1000 4-Mar 60 60 170 185 50 5.2 HGP-15 200 1500 1 76 150 260 185 21 5.3 HGP-20 300 2000 1 76 150 260 185 21 6 HGP-30 500 3000 1 97 230 340 185 10 7.5 HGP-40 700 4000 1 97 230 340 185 7 9.8 HGP-60 1000 6000 1 1/2 105 270 38

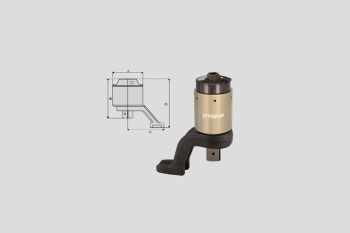

Manual Torque Multiplier (Heavy Duty Series)
Model Max Torque (Nm) Ratio Drive Size (Input) Drive Size (Output) Size (A x B x C x D, mm) Weight (Kg) LTM 1500 1500 05:01 1/2" 3/4" 108 x 176.5 x 234 5.1 LTM 2700 2700 5.3:1 1/2" 1" 108 x 176.5 x 234 7.1 LTM 4500 4500 ###### 1/2" 1" 108 x 176.5 x 234 13

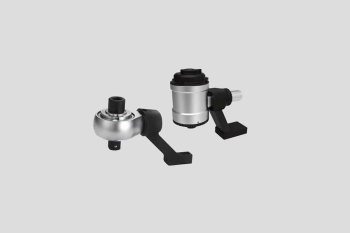

Manual Torque Multiplier
Model Max Torque (Nm) Ratio Drive Size (Input) Drive Size (Output) Size (A x B x C x D, mm) Weight (Kg) HGTM 10 10000 4.5:1 1/2" 1" 82 x 98.5 x 97 x 122.4 2.1 HGTM 20 20000 10:01 1/2" 1" 82 x 102 x 105 x 147 3.15 HGTM 30 30000 12:01 1/2" 1" 89 x 131 x 120 x 163 3.5 HGTM 50 50000 16:01 1/2" 1" 93 x 131 x 120 x 163 5.3 HGTM 75 75000 21.5:1 1/2" 1 1/2" 115 x 163 x 137 x 199 10.6 HGTM 100 100000 27.8:1 1/2" 1 1/2" 127 x 173 x 146 x 215 14

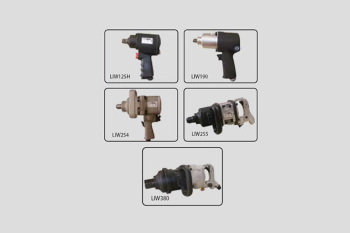

Pneumatic Impact Wrench
Model Square Drive Torque (Max Nm) Free Speed (RPM) Overall Length (mm) Air Inlet (in) Hose Size (in) Air Pressure (bar) Weight (Kg) LIW125 1/2" 745 11,000 160 3/8" 3/8" 6.3 6.3 LIW190 3/4" 1085 4,000 190 1/2" 1/2" 6.3 6.6 LIW190N 3/4" 1085 4,000 190 1/2" 1/2" 6.3 6.8 LIW2254 1" 1100 3,800 255 1/2" 1/2" 6.3 8.5 LIW2254H 1" 1100 3,800 255 1/2" 1/2" 6.3 8.6 LIW2605 1" 1600 3,500 280 1/2" 1/2" 6.3 10.8 LIW2605H 1" 1600 3,500 280 1/2" 1/2" 6.3 11 LIW380 1 1/2" 2250 2,000 400 1/2" 1/2" 6.3 12.8

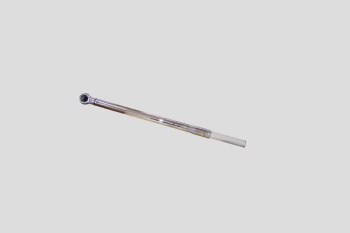

HG-MMT Series
Model Square Drive Torque Range (Nm) Torque Range (Lb.ft) Length (mm) Weight (Kg) MMT 75-400 3/4" 60-400 40-300 700 2.5 MMT 75-500 3/4" 80-500 60-370 800 2.8 MMT 75-800 3/4" 100-800 75-590 1000 3 MMT 75-1000 3/4" 120-1000 90-740 1200 3.6 MMT 1-1000 1" 200-1000 150-740 1200 5.9 MMT 1-1500 1" 300-1500 220-1100 1200 9.2 MMT 1-2000 1" 400-2000 300-1480 1250 10.5 MMT 1-3000 1" 500-3000 370-2200 1250 10.5
