Products

Model Square Drive Torque (Max Nm) Free Speed (RPM) Overall Length (mm) Air Inlet (in) Hose Size (in) Air Pressure (bar) Weight (Kg) LIW125 1/2" 745 11,000 160 3/8" 3/8" 6.3 6.3 LIW190 3/4" 1085 4,000 190 1/2" 1/2" 6.3 6.6 LIW190N 3/4" 1085 4,000 190 1/2" 1/2" 6.3 6.8 LIW2254 1" 1100 3,800 255 1/2" 1/2" 6.3 8.5 LIW2254H 1" 1100 3,800 255 1/2" 1/2" 6.3 8.6 LIW2605 1" 1600 3,500 280 1/2" 1/2" 6.3 10.8 LIW2605H 1" 1600 3,500 280 1/2" 1/2" 6.3 11 LIW380 1 1/2" 2250 2,000 400 1/2" 1/2" 6.3 12.8

Model Max Torque (Nm) Ratio Drive Size (Input) Drive Size (Output) Size (A x B x C x D, mm) Weight (Kg) HGTM 10 10000 4.5:1 1/2" 1" 82 x 98.5 x 97 x 122.4 2.1 HGTM 20 20000 10:01 1/2" 1" 82 x 102 x 105 x 147 3.15 HGTM 30 30000 12:01 1/2" 1" 89 x 131 x 120 x 163 3.5 HGTM 50 50000 16:01 1/2" 1" 93 x 131 x 120 x 163 5.3 HGTM 75 75000 21.5:1 1/2" 1 1/2" 115 x 163 x 137 x 199 10.6 HGTM 100 100000 27.8:1 1/2" 1 1/2" 127 x 173 x 146 x 215 14

Model Max Torque (Nm) Ratio Drive Size (Input) Drive Size (Output) Size (A x B x C x D, mm) Weight (Kg) LTM 1500 1500 05:01 1/2" 3/4" 108 x 176.5 x 234 5.1 LTM 2700 2700 5.3:1 1/2" 1" 108 x 176.5 x 234 7.1 LTM 4500 4500 ###### 1/2" 1" 108 x 176.5 x 234 13

HGP series requires pressure 90psi with 55CFM flow. FRL unit must to extract best performance & long life. Accurate torque with low noise and low vibration. Made from lightweight high-strength material. Precise gear design & ratio helps deliver accurate torque. Highest power-to-weight ratio Customized sizes available up on request. Extensions available for job specific applications. Splined reaction area allows for the use of custom reaction fixtures. Model Min Torque (Nm) Max Torque (Nm) Square Drive Size (in) D (mm) M (mm) L (mm) K (mm) RPM Weight (w/o reaction arm, Kg) HGP-05 100 600 4-Mar 60 60 170 185 50 4.2 HGP-10 150 1000 4-Mar 60 60 170 185 50 5.2 HGP-15 200 1500 1 76 150 260 185 21 5.3 HGP-20 300 2000 1 76 150 260 185 21 6 HGP-30 500 3000 1 97 230 340 185 10 7.5 HGP-40 700 4000 1 97 230 340 185 7 9.8 HGP-60 1000 6000 1 1/2 105 270 38

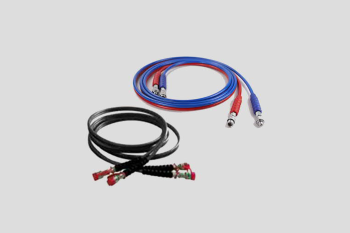

Model Length (mts) Description HG-TW4M 4 Hydraulic twin line hose with quick release couplers on both ends. Fitted with threaded couplers at both ends. Working pressure 700 Bar* HG-TW6M 6 Hydraulic twin line hose with quick release couplers on both ends. Fitted with threaded couplers at both ends. Working pressure 700 Bar* HG-TW10M 10 Hydraulic twin line hose with quick release couplers on both ends. Fitted with threaded couplers at both ends. Working pressure 700 Bar* HG-TW12M 12 Hydraulic twin line hose with quick release couplers on both ends. Fitted with threaded couplers at both ends. Working pressure 700 Bar*

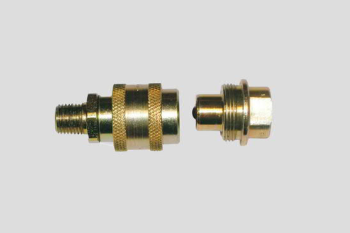

Model Thread Size Description HG7-1/4"FC 1/4" NPTF Female coupler Working pressure 700 Bar HG7-1/4"NPT 1/4" NPTM Male coupler Working pressure 700 Bar
